Ogg Theora Cook Book

Firefogg

Firefogg is the name of an extension to the Firefox webbrowser that adds support for encoding your video files to Theora using a nice web interface. It also enables web-sites to provide a video-upload service that takes videos from your computer, converts them to Theora on-the-fly uploading the generated Theora file to a website.

Installation

Firefogg requires the Firefox web browser, at least version 3.5. If your version of Firefox is older, or in case you do not have Firefox installed at all, visit www.mozilla.com to download an up-to-date version.

Once you have a recent Firefox version, use it to visit the Firefogg homepage at www.firefogg.org:

ffi_00

Now click on Install Firefogg. At the top of the page, Firefox now asks you to allow installation of the new software:

ffi_01

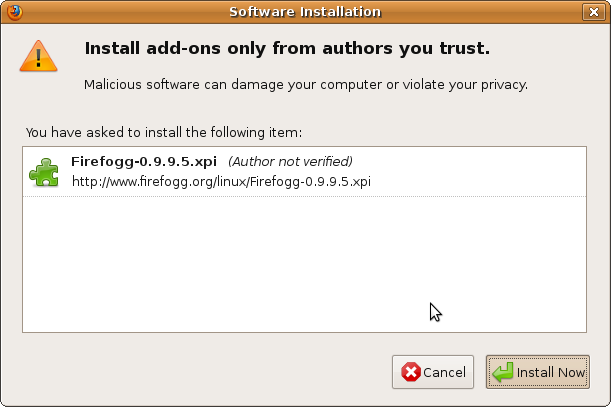

Click on Alllow, to pop up the following dialog:

ffi_02

Click on Install Now. After installation, you are asked to restart Firefox.  Click on Restart Firefox to proceed.

Encoding your first video

To encode videos with Firefogg, you need an internet connection. Parts of the encoding software reside on the internet and will not be installed to your computer.

The encoding software is started by visiting http://firefogg.org/make. The following site shows up:

ffc_00

Click on Select File, which pops up a file dialog allowing you to select the source video file to encode. In this example we are using the video my_source_video.mp4. After selecting the file, you are brought to a dialog that asks you for tuning encoding parameters:

ffd_01

For now, just select Save Ogg. You are asked to select the name of the Theora file to create.  Remember.  We select the name my_theora_video.ogv (remember, the correct file name extension for Theora videos is .ogv). Now encoding starts, using the default set of parameters:

ffd_03

Now wait for the encoding to progress to 100% and you're done.

Advanced Encoding Options

Using the default set of parameters for encoding video yields very small Theora files optimized for web streaming. Perceived video quality will actually be quite low for most tastes. But wait, Firefogg is as advanced as most other Theora encoders.  After a little tuning, very high quality videos can be easily created. Tuning options are available on the web page below the Save Ogg button.

The easiest way to configure encoding is by selecting one of three presets available from the Preset menu:

ffc_04

The first two presets called Web Video Theora and Low Bandwidth Theora are both optimized for streaming video over the internet.  If you intend to play back the created Theora file solely from CDs, USB sticks or your computer's hard disk, you should try to not use them.  Go for the High Quality Theora preset instead.

Custom Settings

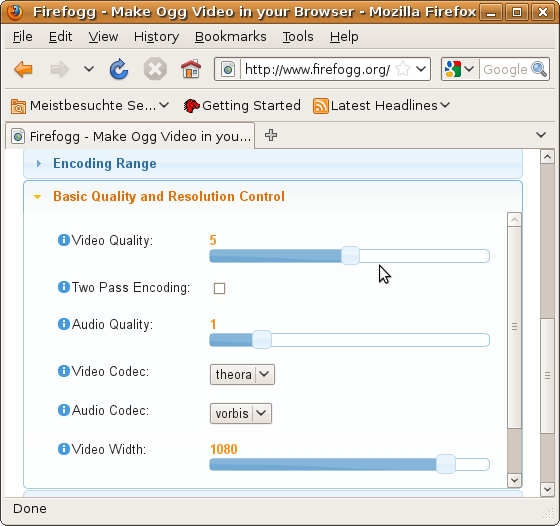

More details of the encoding process can be configured by selecting Custom Settings and manually adjusting lower-level options in the other available menus. Lets have a look at the most important menu, Basic Quality and Resolution Control:

ffc-06_1

Here you can control the quality of the created Theora file, and also choose to change the frame size of the encoded video.  Encoding a video for a target quality (instead of a target bit rate) is the preferred encoding mode for Theora, so in most cases you won't want to try the encoding options in the other menus.

Other Uses of Firefogg

Once installed, Firefogg can be used on websites that support it. There is a list of sites that support Firefogg at http://firefogg.org/sites.
